Detail produk:
|
| Nama Produk: | Kain Fiberglass Kawat Baja Bertulang | Lebar: | 1000 hingga 2000mm |
|---|---|---|---|
| Jenis benang: | Kain Fiberglass E-glass dengan 314 Stainless Steel | Struktur Tenun: | Tenunan Polos |
| Aplikasi: | Selimut Las, Tirai Api | Tipe Tanpa Satin: | 314 Kawat Baja Tahan Karat |
| Suhu Berdiri: | -70-600 Derajat | Good Features: | Fireproof |
520g m2 Heat Proof Filament Fiberglass Cloth - Steel Wire Reinforced
Product Description
520gm2 Heat Resistant Filament Fiberglass Cloth - Steel Wire Reinforced Made of stainless steel wire reinforced non-asbestos textured glass fiber yarn. The reinforcement of the stainless steel wire significantly increases the tensile strength.
It will not burn and can withstand continuous high temperature exposure. 1022°F/550°C; Most oils and alkalis are resistant, and most bleaches and solvents are unaffected. It is the best substitute for asbestos products.
In order to meet unique requirements, it can be used in various thermal insulation and thermal safety, as well as for finishing treatment cloth
Why we used 316/V4A stainless instead of 304 wire?
Type 304 stainless steel is the most common stainless steel formulation used in industrial and consumer applications. Alloyed with chromium and nickel, 304 is resistant to many corrosion attacks.
316 stainless steel is similar in chemical composition to 304 but also contains molybdenum. This addition makes it more resistant to corrosion.
In other words, 316 steel wire has higher tensile strength than 304, can provide higher temperature resistance, and can improve service life in harsh environments
Product Features
Thickness 0.024''
Weight 20oz/yd2
Weave: plain
Width: 40'' 60''
With stainless steel wire reinforced in warp and weft direction
Thread count: warp36/inch weft36/inch
Temp. resistance up to 1022°F /550°C
Application
Fire and smoke curtains
Reusable heat insulation covers
Waterproof
800 degress heat resistance
Fire retardant
High Strength
Durable
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.55±0.05 mm |
| Cloth Weight | 520g/m2 |
| Warp Yarn | 150 Tex + Stainless Wire |
| Weft Yarn | 150 Tex + Stainless Wire |
| Warp and Weft Density | 16*9 Ends/cm |
| Warp Tensile Strength [25*200mm] | 3400N/5cm |
| Weft Tensile Strength [25*200mm] | 3000N/5cm |
| Temperature Resistance | 600oC |
Much More Related Stainless Steel FIberglass Cloth
| Product Type | Thickness mm | Weight g/m2 | Weave |
| PW05 SS | 0.5 | 455 | Plain |
| 666 SS | 0.6 | 630 | 8H Satin |
| 666 SS | 0.6 | 630 | 8H Satin |
| M860W SS | 0.8 | 820 | Dougle Weft Yarn |
| M860 SS | 0.75 | 820 | 8H Satin |
| M860C SS | 0.8 | 820 | Close To Satin |
| M30 SS | 1.2 | 1050 | Plain |
| Other thicknesses can be customized upon request | |||

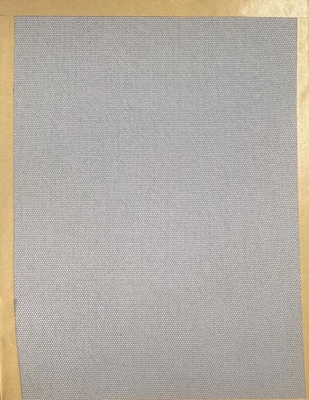

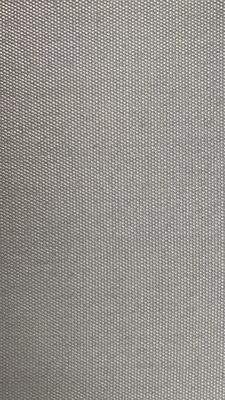

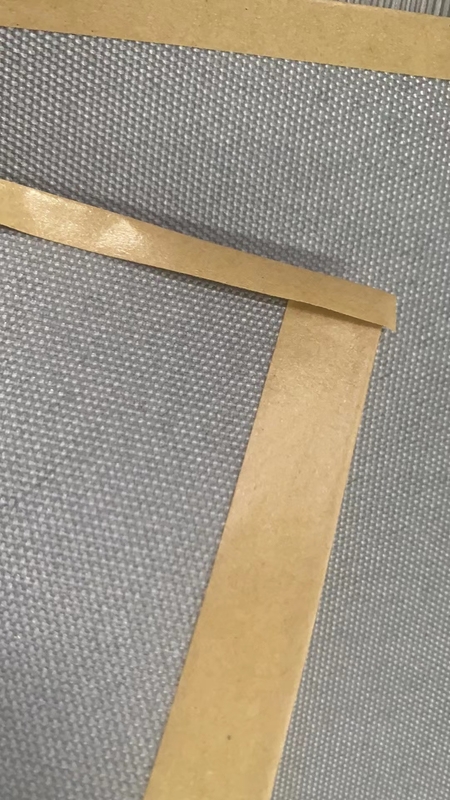

More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. Are you a factory or trading company?
A: We are a factory.
2. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
3. Are your products certified?
A: Yes, we have a third party fire inspection report
4. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
5. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
6. Q:Do you have other production?
A:Certainly,we still have E-glass fiberglass fabric, industry fiberglass cloth, High silica cloth, silicone, polyurethane, graphite, vercimiute, EPDM, fluoro,aluminium coated fiberglass cloth. We are looking forward to your enquiry.
